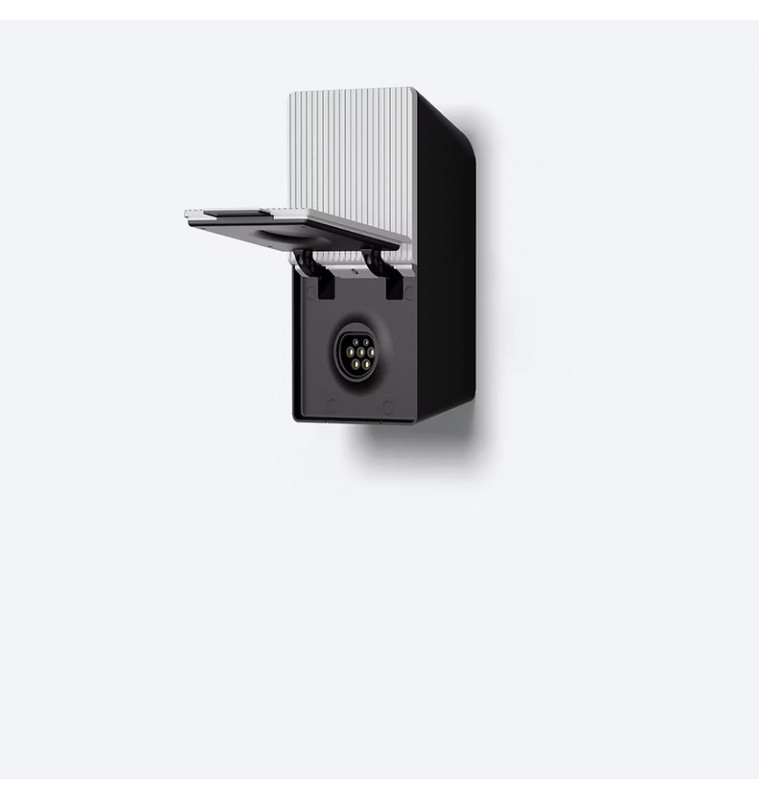

Teltonika EVC2 22 kW Type 2 Socket EV Charger - White
Teltonika EVC2 22 kW Type 2 Socket EV Charger - White
| Brand: | Teltonika |
| Product Code: | EVC2-22-Socket-white |
| Availability: | 1 |
-
665.00€
Teltonika EVC2 22 kW Type 2 socket EV charger is a smart, customisable AC wallbox for residential and commercial charging. Its Type 2 socket (IEC 62196-2) lets drivers use their own charging cable, while three-phase operation delivers up to 22 kW when the vehicle and installation support it.
Smart charging and connectivity
EVC 2 combines Wi-Fi 2.4 GHz, Bluetooth LE, Ethernet RJ45 and 4G LTE Cat 1 connectivity with NFC access and OCPP 1.6J. Use the Teltonika app for local setup and charging control, or connect the charger to an OCPP-compatible backend. Static, dynamic and multi-device load balancing, solar charging modes and a built-in energy meter with better than 1% accuracy help reduce running costs and protect the electrical installation.
Built for demanding environments
IP56 protection, IK10 impact resistance and an operating range of -30 °C to +50 °C make EVC 2 suitable for outdoor, residential and commercial installations. Cable entry is possible from the bottom or the back of the unit, with cable diameter up to 25 mm and conductor cross-section up to 10 mm².
Key features
- Up to 22 kW three-phase AC charging (32 A per phase)
- Type 2 socket to IEC 62196-2 — charging cable not included
- Wi-Fi 2.4 GHz, Bluetooth LE, Ethernet RJ45, 4G LTE Cat 1 (dual SIM/eSIM) and NFC
- OCPP 1.6J and local control through the Teltonika app
- Static, dynamic and multi-device load balancing; solar energy modes
- Built-in energy meter with better than 1% accuracy
- 6 mA DC residual current detection (IEC 62955), ground fault detection and OVC III
- IP56 protection, IK10 impact resistance and UL94 flame-retardant PC enclosure
- CE, RCM and UKCA compliant
- 36-month warranty, extendable to 60 months
Technical specifications
| Charging power | Up to 22 kW (32 A, three-phase) |
|---|---|
| Connector | Type 2 socket, IEC 62196-2 |
| Input voltage | 230 V / 400 V AC, ±10% |
| Rated frequency | 50/60 Hz |
| Maximum current | 32 A per phase |
| Connectivity | Wi-Fi 2.4 GHz, Bluetooth LE, Ethernet RJ45, 4G LTE Cat 1 (dual SIM/eSIM), NFC |
| Protocol | OCPP 1.6J |
| Load balancing | Static, dynamic and multi-device; solar energy modes |
| Energy metering | Built-in, accuracy better than 1% |
| Protection | IP56, IK10, OVC III, 6 mA DC RCD, ground fault detection |
| Operating temperature | -30 °C to +50 °C |
| Dimensions | 190 x 125 x 401 mm (W x D x H) |
| Weight | 4.6 kg (net) |
| Warranty | 36 months, extendable to 60 months |
| Certifications | CE, RCM, UKCA; IEC 61851-1, IEC 61851-21-2, IEC 62955 |
Installation and compatibility
The EVC 2 is wall-mounted and can also be installed on optional Teltonika mounting poles. It is compatible with electric and plug-in hybrid vehicles that use the Type 2 AC charging standard. A Type 2 charging cable is not included with the socket version; use a compatible cable rated for the required charging current.
Note: charging power depends on the vehicle, the on-board charger and the capacity of the electrical installation.
| Environmental conditions | |
| Operation temperature | -30 °C to +50 °C |
| Storage temperature | -40 °C to +60 °C |
| Relative humidity | ≤ 95% RH, non-condensing |
| Electrical specification | |
| Input power supply / Input voltage | 230/400 V AC (1~/3~), ±10% |
| Basic current (Ib) | Up to 32 A |
| Maximum rated current (Imax) | Up to 32 A per phase |
| Operational frequency range | 50/60 Hz |
| Accuracy class | <1% (built-in energy meter) |
| Output Power | 22 kW (7.4 / 11 / 22 kW configurable) |
| RS485 communication specifications | |
| Bus type | RS485 |
| Protocol | OCPP 1.6J |
| Mechanical and enclosure specification | |
| Product dimension (outline) | 190 x 125 x 401 mm (W x D x H) |
| Mount type | Wall-mounted (pole optional) |
| Enclosure material | Flame-retardant PC |
| Enclosure colour | White |
| Product weight | 4600 g (net) |
| Enclosure protection level | IP56 |
