Industrial Gateway with 4G/LTE connection [GW-IND-01-4GO]

Industrial Gateway with 4G/LTE connection [GW-IND-01-4GO]

Product Code: GW-IND-01-4GO
Availability: Pre-Order
  • 299.00€

    329.00€

Available Options

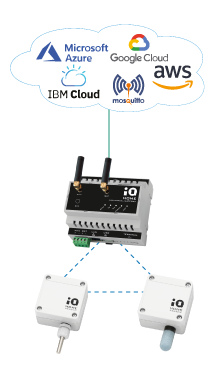

The IQ Home gateway family designed for IoT applications. The purpose of the gateway is to bridge the gap between IQRF DPA devices in the field and the Cloud in the easiest way. The gateway is optimized for IQRF DPA networks to manage and control complex environments. The gateway comes with Linux operating system with preinstalled custom software services. The IQ Home gateway is ready to use. All you need to do is to setup our cloud parameters in the gateway and bond IQRF DPA nodes via IQRF IDE.

Ready to use gateway to connect IQRF networks to the Internet.

  • 2G/3G/4G/LTE Support
    • LTE FDD: B1/B3/B5/B7/B8/B20
    • WCDMA: B1/B5/B8
    • GSM: 850/900/1800/1900MHz
  • Easy to create IoT sensor networks
  • Easy to integrate with IQRF based sensors
  • RTC on board in case of power outage
  • Protected EEPROM and Flash storage (eeRAID and eMMC RAID)
  • Enhanced reliability feautres
  • IQRF IDE UDP communication support
  • MQTT support
  • JSON messages
  • Automated periodical data collection
  • Automatic DPA timing management
  • Remotely configurable and accessible
RF Specifiaction
Communication technology IQRF - DPA
Communication module DCTR-76D(A)
IQRF-OS verision 4.03D
IQRF-DPA verision 4.11
RF mode Low Power (STD on special request)
RF band 868 MHz (916 MHz on special request)
RF output power 8 mW
Antenna External
Local display and control
State feedback LED (RX/TX)
Gateway activity LED (STAT/ACT)
WWAN status LED
Environmental conditions
Operation temperature -20 °C to +70 °C
Storage temperature -20 °C to +70 °C
Relative humidity 0 % to 85 %
Electrical specification
Input power supply / Input voltage DC 9V-16V ( power supply not included )
Power consumption 2.5 W (typical)
WWAN connection specifications
Frequency bands - 2G/3G/4G/LTE Support - LTE FDD: B1/B3/B5/B7/B8/B20 - LTE TDD: B38/B40/B41 - WCDMA: B1/B5/B8 - GSM: B3/B8
Sim format Mini SIM (2FF)
Mechanical and enclosure specification
Product dimension (outline) 107mm(W) x 65mm(D) x 90mm(H)
Mount type DIN Rail mountable
Enclosure colour Gray
Product weight 275 g
Enclosure protection level IP20

Datasheets

Title Version Date
Industrial Gateway Datasheet 20.04 2020-04-18

Reference Manuals

Title Version Date
Gateway Backup and Restore with FlashIt! 20.04 2020-04-21
Gateway Reference Manual 2.6.0 2020-04-24
Modbus TCP Manual for PLC Applications 20.04 2020-04-27

Software Downloads

Title Version Date
Link It! - Gateway Management Tool 2020-04-27

Application Notes

Title Version Date
Gateway Users Guide 20.04 2020-04-21
Setup Gateway for Microsoft Azure IoT Hub 20.04 2020-04-21
Gateway Quick Start Guide 20.06 2020-06-04

Video tutorials

Title Version Date
Connection to Gateway (LAN) 2019-06-27
Adding a New Device 2019-06-27
Connection to Gateway (USB) 2020-01-17
Introduction and Install 2019-04-09

Marketing Materials

Title Version Date
Gateway Brief 19.04 2020-04-16
Link It! Brief 19.04 2020-04-16
