Industrial Gateway with Ethernet connection [GW-IND-01-ETH]
![Industrial Gateway with Ethernet connection [GW-IND-01-ETH]](https://www.iqhome.org/image/cache/catalog/products/gateway/Eth-759x800.png "Industrial Gateway with Ethernet connection [GW-IND-01-ETH]")
![Industrial Gateway with Ethernet connection [GW-IND-01-ETH]](https://www.iqhome.org/image/cache/catalog/products/gateway/gateway_800-759x800.png "Industrial Gateway with Ethernet connection [GW-IND-01-ETH]")
Industrial Gateway with Ethernet connection [GW-IND-01-ETH]
| Product Code: | GW-IND-01-ETH |
| Availability: | Pre-Order |
-
349.00€
The GW-IND-01-ETH gateway is part of the IQ Home industrial gateway family. These devices are designed to be used in an IoT network. The gateway's job is to bridge the gap between the QRF-DPA devices in the field and the cloud, making communication between client and server simple and very easy to set up. The device is optimized for IQRF-DPA networks. It is designed for the management of complex environments. The gateway comes armed with a Linux operating system that has preinstalled software services customized for the product. The IQ Home gateway is ready-to-use right out of the box. All you need to do is set up our cloud parameters in the gateway and connect the QRF-DPA nodes via an IQRF IDE.
Ready-to-use gateway to connect IQRF networks to the Internet.
- Easy-to-create IoT sensor networks
- Easy to integrate into IQRF based sensor networks
- RTC on board, in case of a power outage
- Protected EEPROM and Flash storages (eeRAID and eMMC RAID)
- Enhanced reliability features
- IQRF IDE UDP communication support
- MQTT support
- JSON messages
- Automated periodical data collection
- Automatic DPA timing management
- Remotely configurable and accessible
| RF Specifiaction | |
| Communication technology | IQRF - DPA |
| Communication module | DCTR-76D(A) |
| IQRF-OS verision | 4.03D |
| IQRF-DPA verision | 4.11 |
| RF mode | Low Power (STD on special request) |
| RF band | 868 MHz (916 MHz on special request) |
| RF output power | 8 mW |
| Antenna | External |
| Local display and control | |
| State feedback | LED (RX/TX) |
| Gateway activity | LED (STAT/ACT) |
| Environmental conditions | |
| Operation temperature | -20 °C to +70 °C |
| Storage temperature | -20 °C to +70 °C |
| Relative humidity | 0 % to 85 % |
| Electrical specification | |
| Input power supply / Input voltage | DC 9V-16V ( power supply not included ) |
| Power consumption | 2.5 W (typical) |
| Ethernet connection specifications | |
| Ethernet connector | RJ45 |
| Ethernet connection speed | 10/100Mbps |
| Mechanical and enclosure specification | |
| Product dimension (outline) | 107mm(W) x 65mm(D) x 90mm(H) |
| Mount type | DIN Rail mountable |
| Enclosure colour | Gray |
| Product weight | 250 g |
| Enclosure protection level | IP20 |
Datasheets
| Title | Version | Date | |
|---|---|---|---|
 |
Industrial Gateway Datasheet | 20.04 | 2020-04-18 |
Reference Manuals
| Title | Version | Date | |
|---|---|---|---|
|
Gateway Backup and Restore with FlashIt! | 22.03 | 2022-03-16 |
|
Gateway Reference Manual | 3.0.5 | 2023-09-14 |
|
Modbus TCP Manual for PLC Applications | 21.05 | 2021-05-14 |
Software Downloads
| Title | Version | Date | |
|---|---|---|---|
 |
Link It! - Gateway Management Tool | 2020-04-27 |
Application Notes
| Title | Version | Date | |
|---|---|---|---|
 |
Gateway Quick Start Guide | 22.08 | 2022-08-24 |
 |
Uploading sensor data to Adafruit IO with Node-RED | 22.08 | 2022-08-24 |
|
Setup Gateway for Microsoft Azure IoT Hub | 22.08 | 2022-08-24 |
 |
Uploading sensor data to Google Spreadsheet with Node-RED | 22.08 | 2022-08-24 |
 |
Uploading sensor data to ThingSpeak with Node-RED | 22.08 | 2022-08-24 |
|
Gateway Users Guide | 22.08 | 2022-08-24 |
 |
Sending email alerts with Node-RED | 22.08 | 2022-08-24 |
 |
Visualizing sensor data using Node-RED Dashboard | 22.08 | 2022-08-24 |
Video tutorials
| Title | Version | Date | |
|---|---|---|---|
 |
Connection to Gateway (USB) | 2023-02-20 | |
 |
Adding a New Device | 2023-02-20 | |
 |
The Scheduler Wizard | 2023-02-20 | |
 |
Introduction and Install | 2023-02-20 | |
 |
Connection to Gateway (LAN) | 2023-02-20 |
Marketing Materials
| Title | Version | Date | |
|---|---|---|---|
 |
Gateway Brief | 19.04 | 2020-04-16 |
|
Link It! Brief | 19.04 | 2020-04-16 |
Related Products
![Power Supply for Industrial Gateway 230VAC/15VDC [HDR-15-15]](https://www.iqhome.org/image/cache/catalog/products/accessiories/HDR-15-15-759x800.png "Power Supply for Industrial Gateway 230VAC/15VDC [HDR-15-15]")
![Power Supply for Industrial Gateway 230VAC/15VDC [HDR-15-15]](https://www.iqhome.org/image/cache/catalog/products/accessiories/HDR-15-15_2-247x260.png "Power Supply for Industrial Gateway 230VAC/15VDC [HDR-15-15]")
![Power Supply for Industrial Gateway 24VDC/12VDC [DDR-15L-12]](https://www.iqhome.org/image/cache/catalog/products/accessiories/DDR-15L-12-759x800.png "Power Supply for Industrial Gateway 24VDC/12VDC [DDR-15L-12]")
![Power Supply for Industrial Gateway 24VDC/12VDC [DDR-15L-12]](https://www.iqhome.org/image/cache/catalog/products/accessiories/DDR-15L-12_2-247x260.png "Power Supply for Industrial Gateway 24VDC/12VDC [DDR-15L-12]")

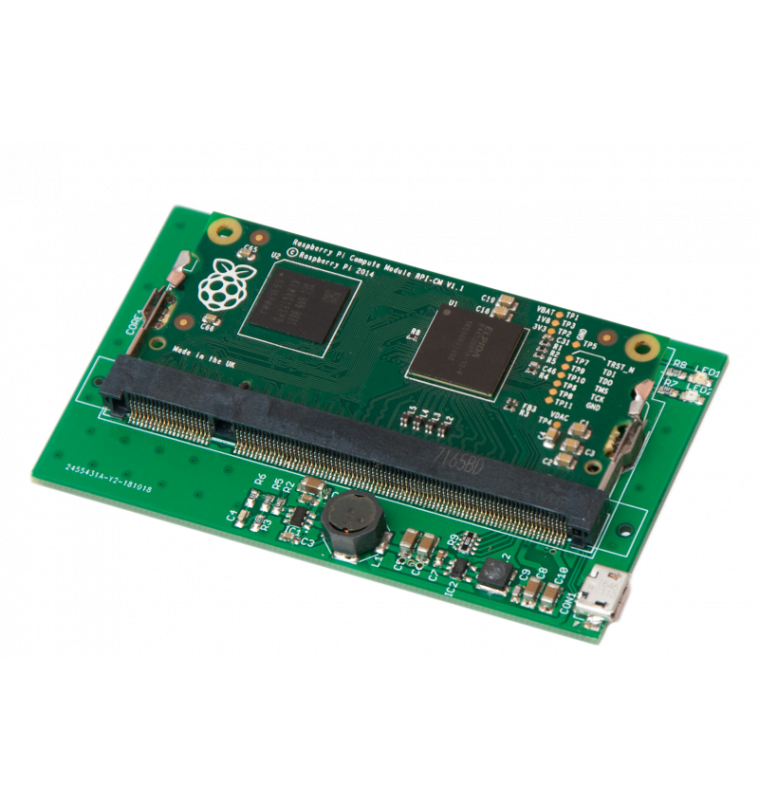

![Flash It! - Gateway backup tool [AC-FLI-01]](https://www.iqhome.org/image/cache/catalog/products/flash%20It/DSC_0048_bepattanv_800-759x800.png "Flash It! - Gateway backup tool [AC-FLI-01]")
